Delivery mechanisms for Woodchip
Woodchip storage for boilers and other systems can be provided for use both internally and externally using Walking Floor containers which can cater for expansion or a change in position which fixed systems cannot. These systems can be frame mounted and supplied with augur delivery systems to feed the boiler or the biochar production unit.
Woodchip Storage & Delivery Systems for Biomass Boilers and Biochar Feed Stations

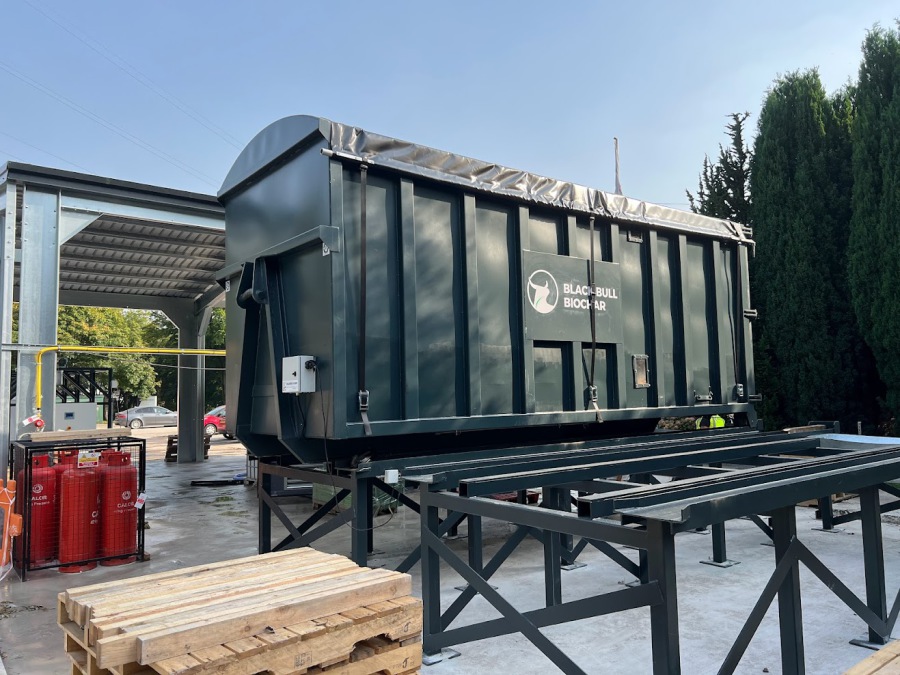

A twin bin feeding station complete with support stands and conveyors to allow continuous 24 hour operation supplied to Black Bull Biochar, sending feedstock to their Pyreg biochar production unit.
Walking Floor Containers for woodchip storage
Hooklift Solutions can supply you with Hooklift Containers for woodchip delivery that are deliverable by hooklift following loading which are also equipped with Walking Floors that enable the container to be used as on site storage which in turn is linked into an augur/delivery system to feed the boiler as illustrated in the photograph.

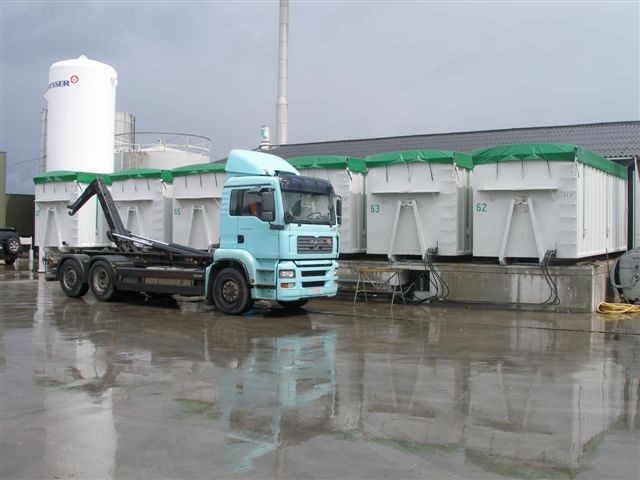

Multiple container storage using walking floor equipped hooklift containers
A typical hooklift container storage solution showing a loaded container feeding the biomass boiler whilst the 2nd container is being replenished

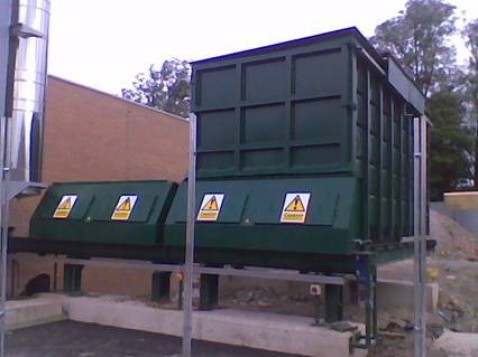

Woodchip storage & delivery for recycled woodchip
This 9m Walking Floor Container is fitted with a Walking Floor coupled to a heavy duty agitator and augur discharge facility specifically to handle recycled woodchip which is becoming popular as a fuel source from waste and wood recyclers. It has been supplied to Ecotec who offer boilers capable of using recycled wood as their primary fuel. Recycled woodchip is much more difficult to get to flow through the system due to its non homogeneous nature and requires heavy duty augurs and agitators. Hooklift Solutions can supply the stands to mount the containers together with the augur assemblies and Hydraulic Power Units for static applications like these.

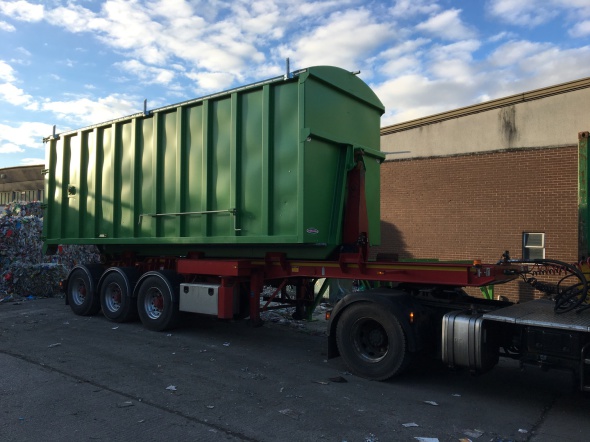

Woodchip delivery using a mobile Walking Floor Container
A mobile Walking Floor Container that can be used to feed augur troughs. It is demountable and draws its hydraulic power from the hooklift it is carried on

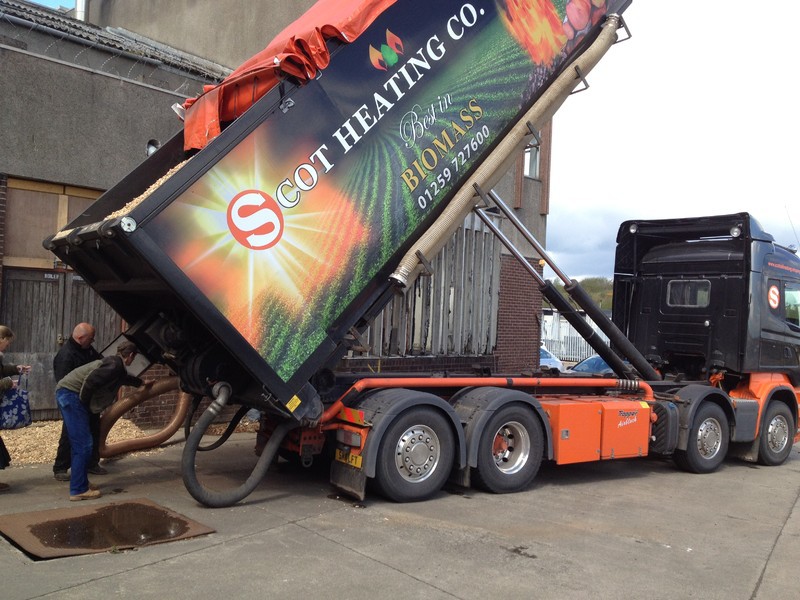

Pneumatic Delivery Systems for Blown Delivery of Woodchip
We can supply pneumatic discharge equipment for fitment to your hooklift chassis together with the rotary/valve and augur installation fitted to the container to allow woodchip delivery into a silo/bunker that is above ground where a tipper delivery is not practical.
An illustration of a rigid hooklift fitted with chassis mounted compressor installation

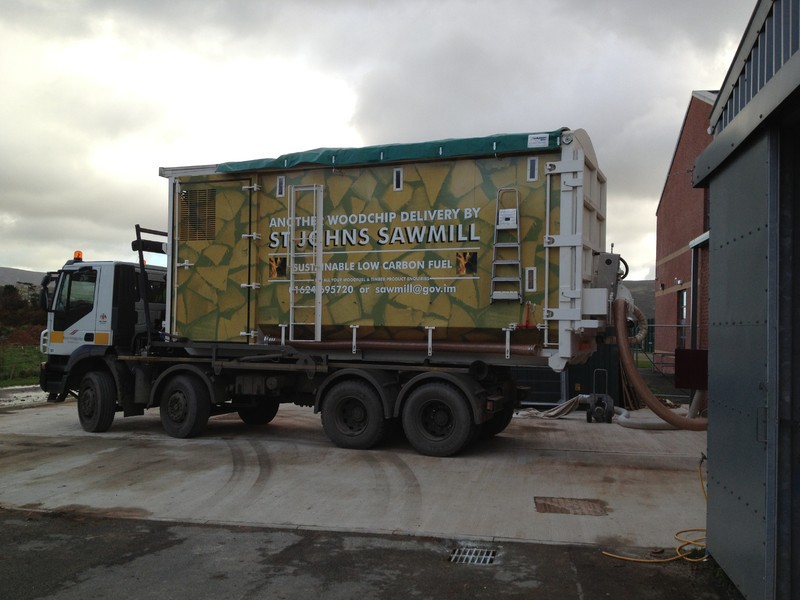

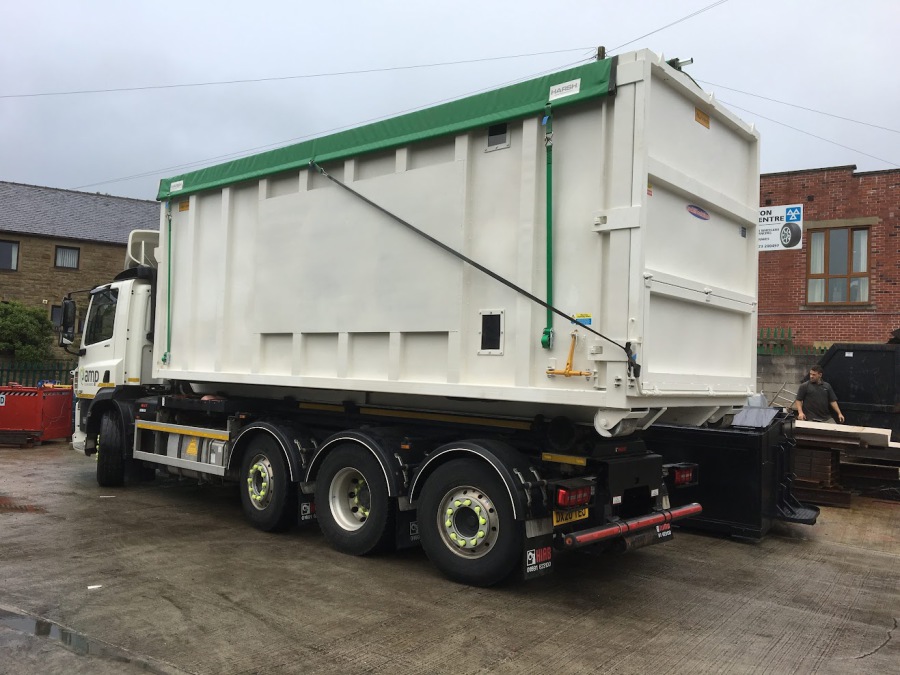

Independently powered woodchip blowers that can be used by any suitable hooklift
This 35 cu yd capacity container is independent powered and can by operated by any suitable hooklift vehicle.
To meet customer requirements, this independent unit has been developed by Hooklift Solutions which is self sufficient and has an auxiliary engine and compressor mounted in an engine compartment at the front of the body. As the unit does not tip for discharge, a Walking Floor feeds the woodchip to the augur and rotary valve to produce a balanced flow for discharge.
